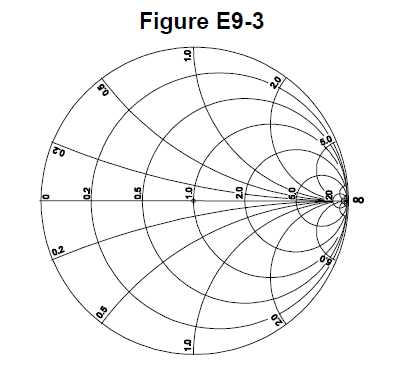

On the Smith chart shown in Figure E9-3, what is the only straight line shown?
Pick an answer to check it.
Answer: D. The resistance axis
The only straight line on a Smith chart is the horizontal resistance axis. It is where reactance is zero.
Tip: Straight line = resistance axis.
