What is component 1 in figure T-1?
Pick an answer to check it.
Answer: A. Resistor

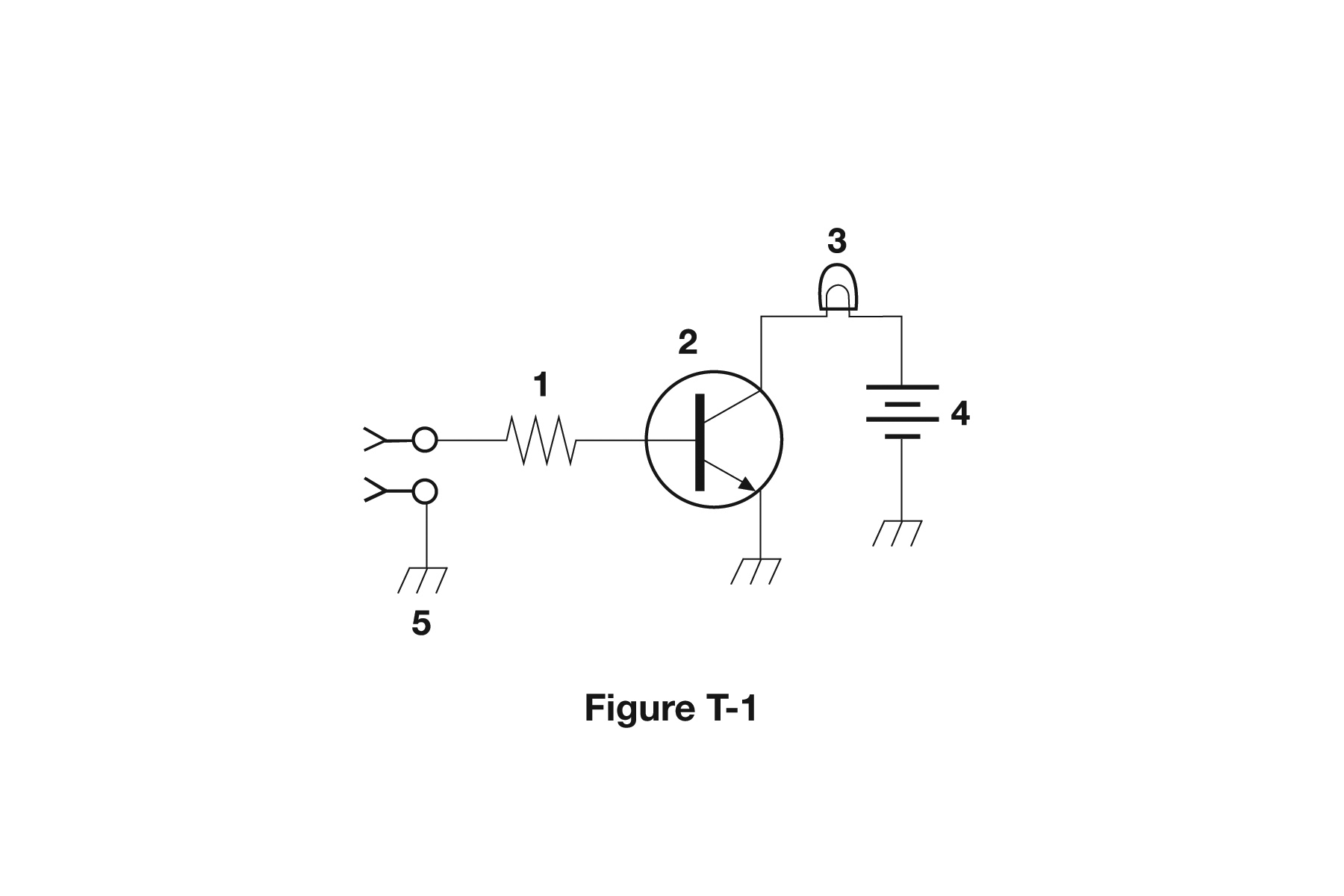

Component 1 in Figure T-1 is a zigzag line, which is the standard symbol for a resistor. It sits between the input connector and the transistor.
Tip: Zigzag line = resistor.
