T6C04

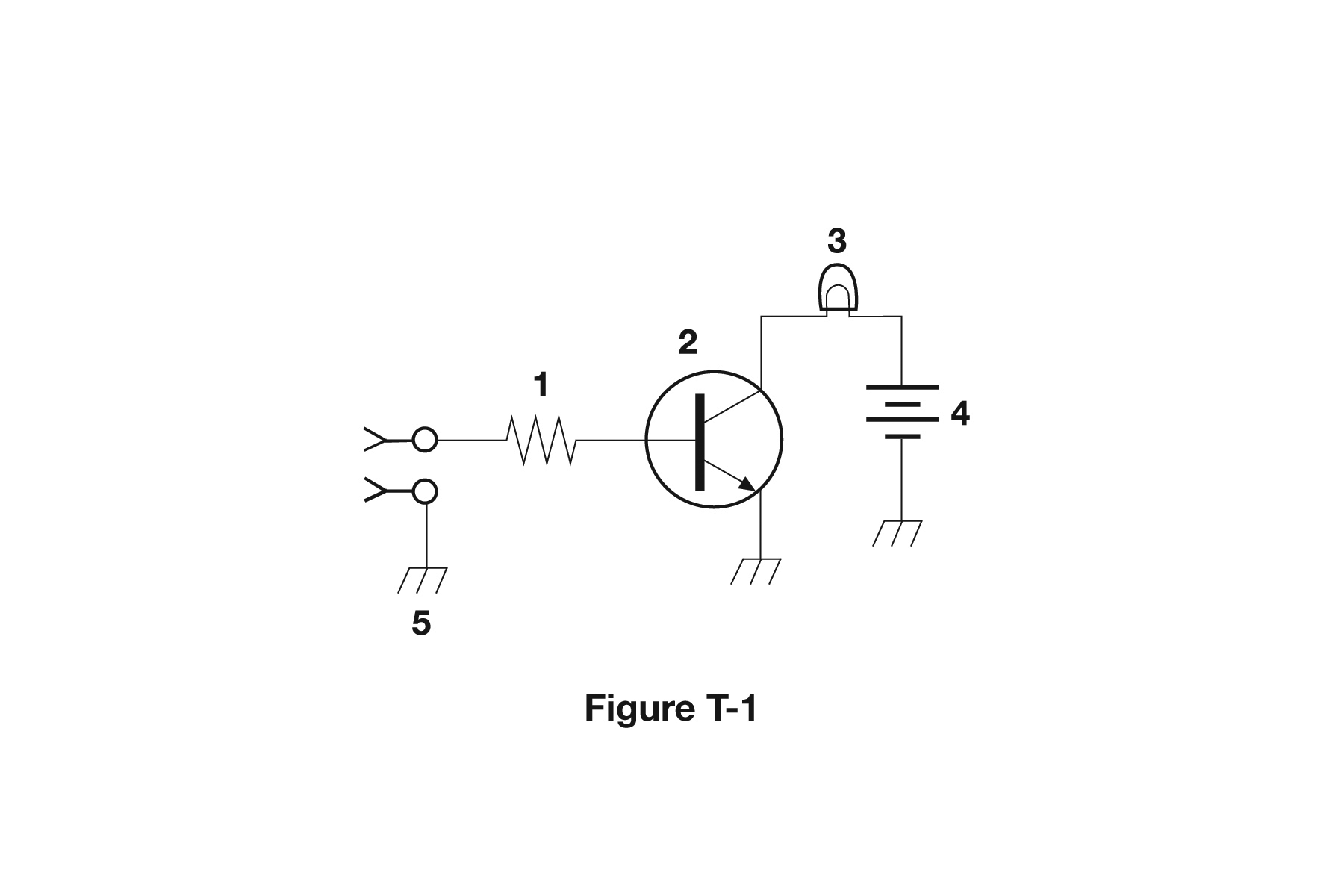

What is component 3 in figure T-1?
Pick an answer to check it.
Answer: C. Lamp
Component 3 in Figure T-1 looks like a small rounded dome with a loop inside, sitting on top of the circuit line. That is the symbol for a lamp, such as an indicator bulb, here switched by the transistor.
Tip: Rounded bulb shape = lamp.
