Technician › T6 Electronic and Electrical Components › T6C10
T6C10

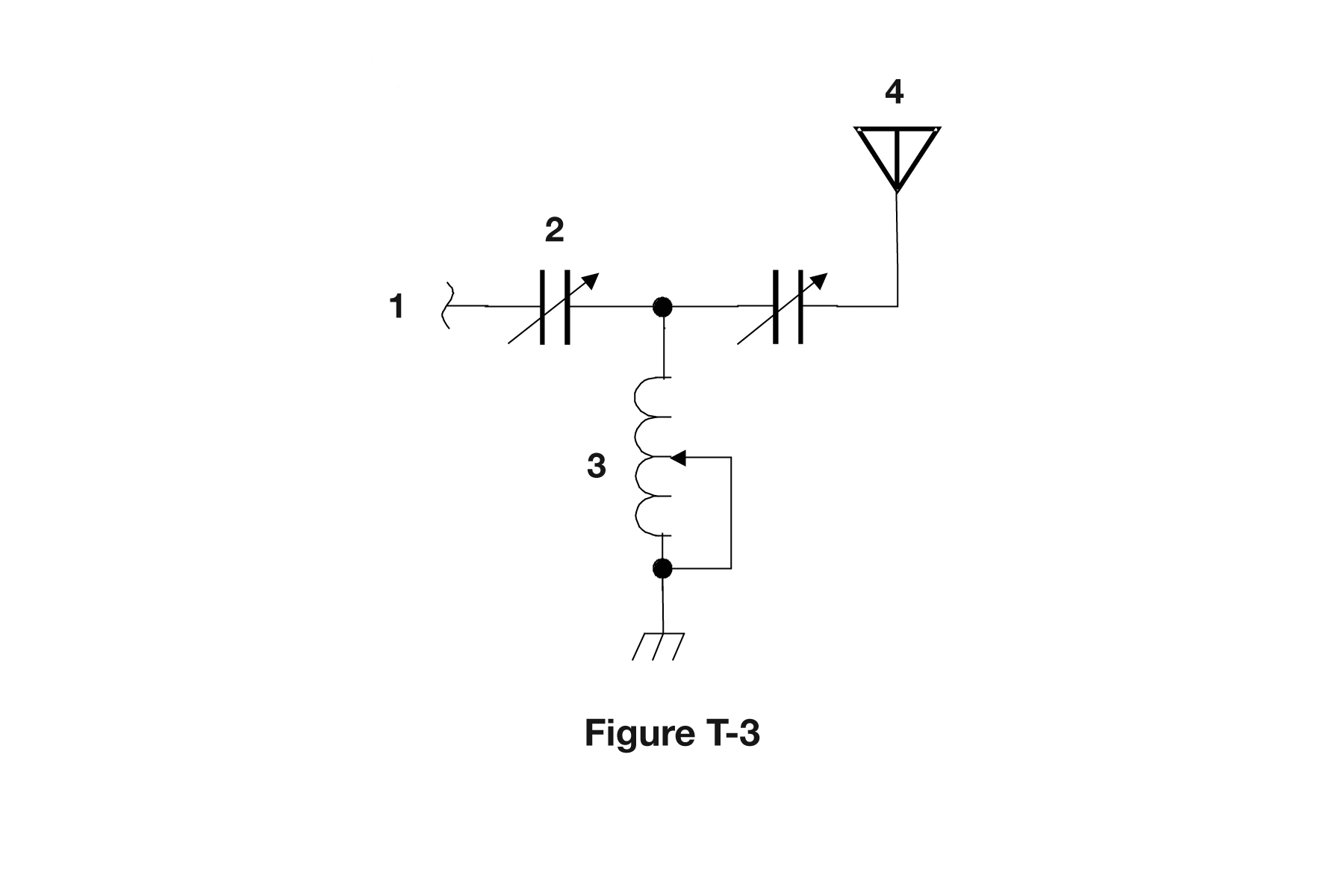

What is component 3 in figure T-3?
Pick an answer to check it.
Answer: D. Variable inductor
Component 3 in Figure T-3 is a coil (a row of loops) with an arrow tapping into it. A coil is an inductor, and the arrow shows its value can be adjusted, so it is a variable inductor.
Tip: Coil plus arrow = variable inductor.
