E9B05

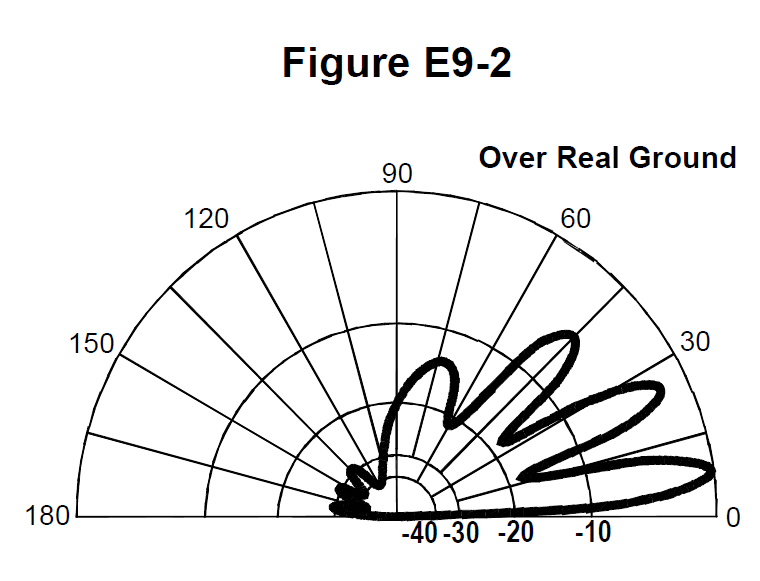

What type of antenna pattern is shown in Figure E9-2?
Pick an answer to check it.
Answer: A. Elevation
Figure E9-2 shows radiation versus angle above the horizon, from ground level up to overhead. That is an elevation pattern; an azimuth pattern shows compass directions.
Tip: Angles above horizon = elevation pattern.
