E9B06

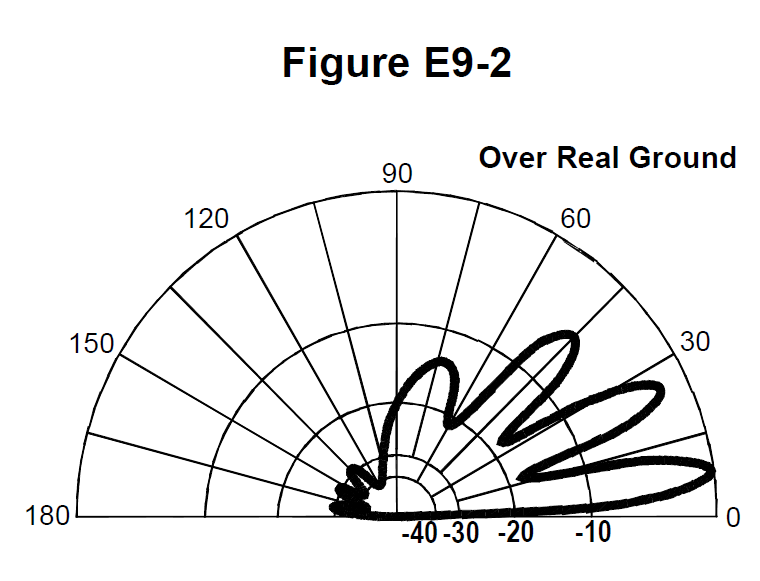

What is the elevation angle of peak response in the antenna radiation pattern shown in Figure E9-2?
Pick an answer to check it.
Answer: C. 7.5 degrees
In Figure E9-2 the main lobe peaks at a low angle of about 7.5 degrees above the horizon. Low angles are good for long-distance HF contacts.
Tip: Peak lobe is low, 7.5 degrees.
